Surge 6004


Surge 6004

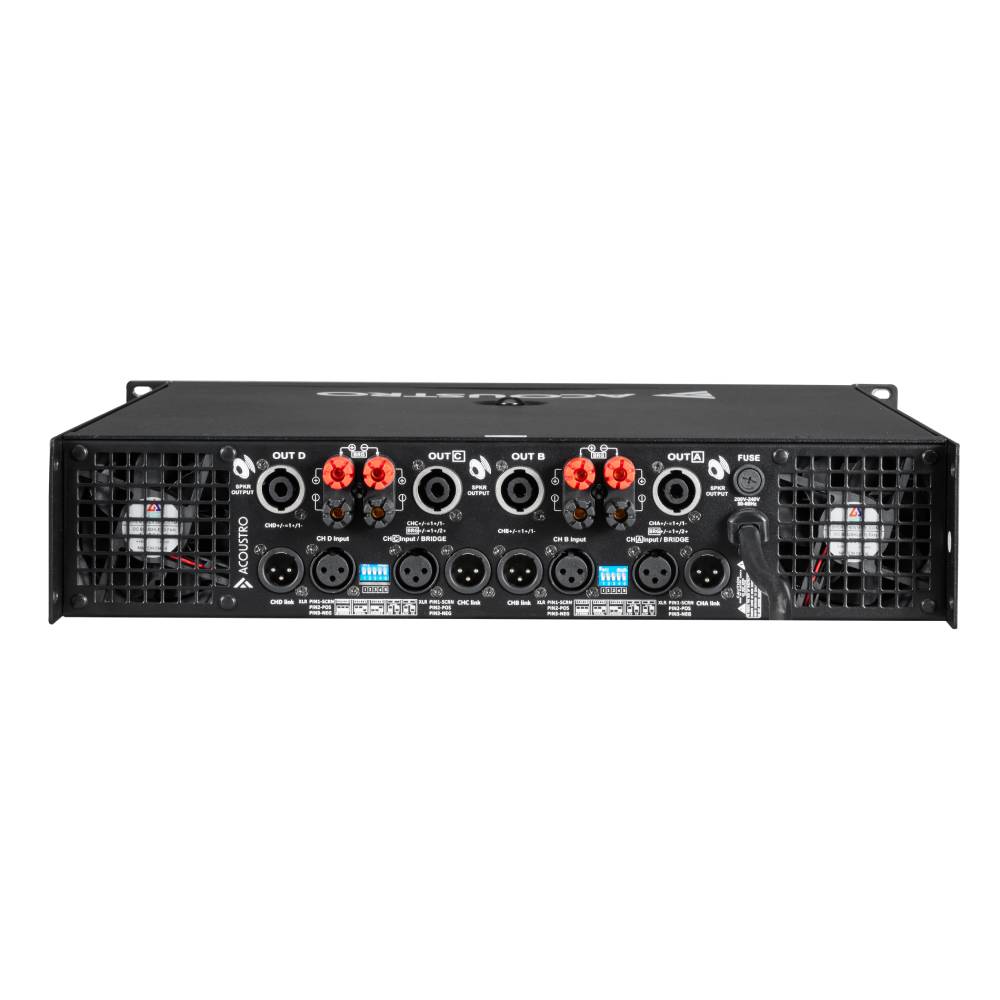

The SURGE 6004 is a high-performance four-channel power amplifier designed with a Class H circuit and a durable toroidal transformer. It’s efficient cooling system, powered by force-driven fans, helps maintain optimal internal temperature during extended use. The built-in LCD display allows for easy monitoring of essential functions, including temperature, fan speed, input EQ, operation mode, channel gain and output levels – ensuring smooth and intuitive control. Built for power and dependability, the SURGE 6004 delivers exceptional performance.
| Technical Specifications | |
|---|---|
| Circuit Technology | Class H |
| 8Ω Stereo Power Output | 4×1050 Watts |
| 4Ω Stereo Power Output | 4×1600 Watts |
| 8Ω Bridge Power Output | 2×3000 Watts |
| Panel Height | 2U |
| Frequency Response(+-0.5dB) | 20Hz-20kHz |
| S/N ratio | >110dB |
| THD | 0.05% |
| Damping Factor | >550 |
| Cross Talk | >35 dB |
| Slew Rate | 20V/uS |
| Dimensions(Installed) | 60.5x58x18 cm |
| Weight | 32.6 Kilograms |
