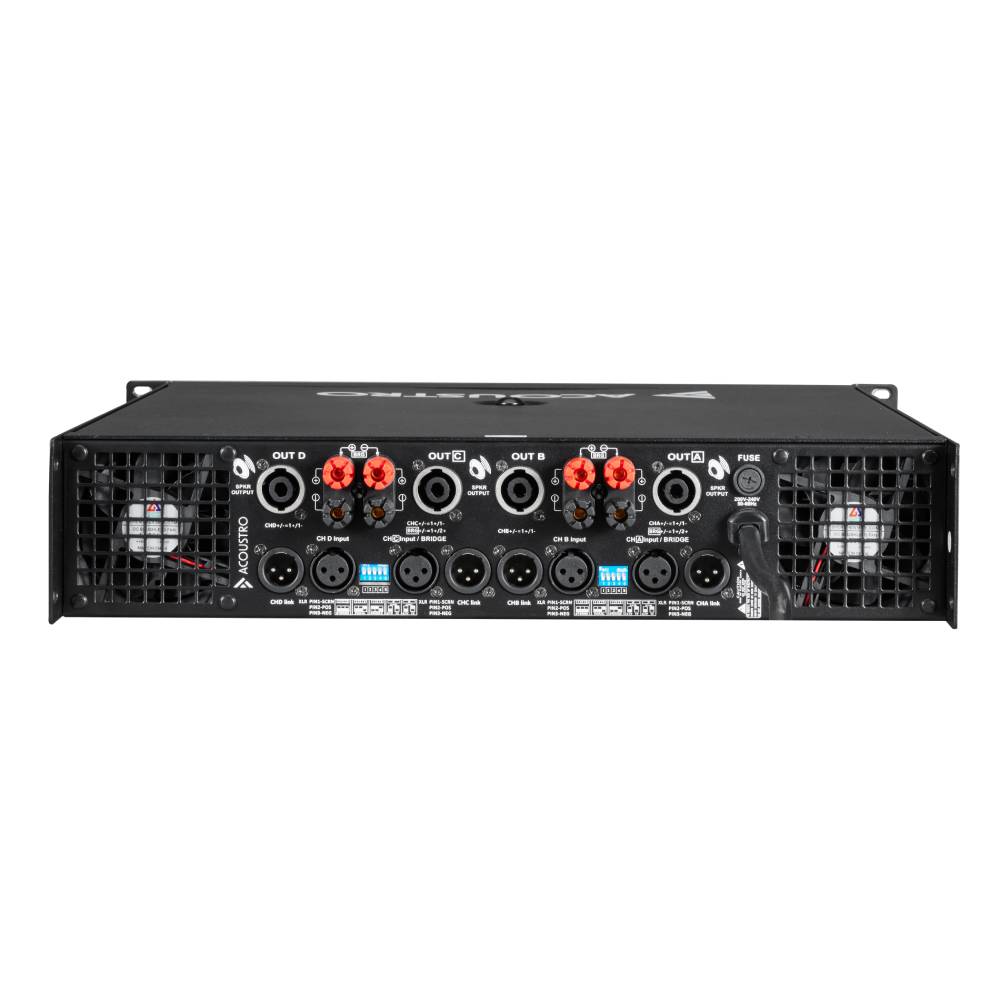

Surge 5004


Surge 5004
SURGE 5004 is a four channel power amplifier which originates from a class H circuit design with a toroidal transformer. The force cooling fans help maintain the temperature of the vitals inside the amplifier while use. The LCD display helps you monitor the temperature, fan speed, input EQ, Operation mode and channel gain & output & output level, making your operating experience smooth and seamless. This amplifier is ready to rock your line arrays and tops with unmatched reliability and performance.
| Technical Specifications | |
|---|---|
| Circuit Technology | Class TD |
| 8Ω Stereo Power Output | 4×850 Watts |
| 4Ω Stereo Power Output | 4×1300 Watts |
| 2Ω Stereo Power Output | 2×7400 Watts |
| 8Ω Bridge Power Output | 2×2400 Watts |
| Panel Height | 2U |
| Frequency Response(+-0.5dB) | 20Hz-20kHz |
| S/N ratio | >110dB |
| THD | 0.05% |
| Damping Factor | >550 |
| Cross Talk | >35 dB |
| Slew Rate | 20V/uS |
| Dimensions(Installed) | 60.5x58x18 cm |
| Weight | 31.1 Kilograms |
