ND12 AL 1200

ND12 AL 1200

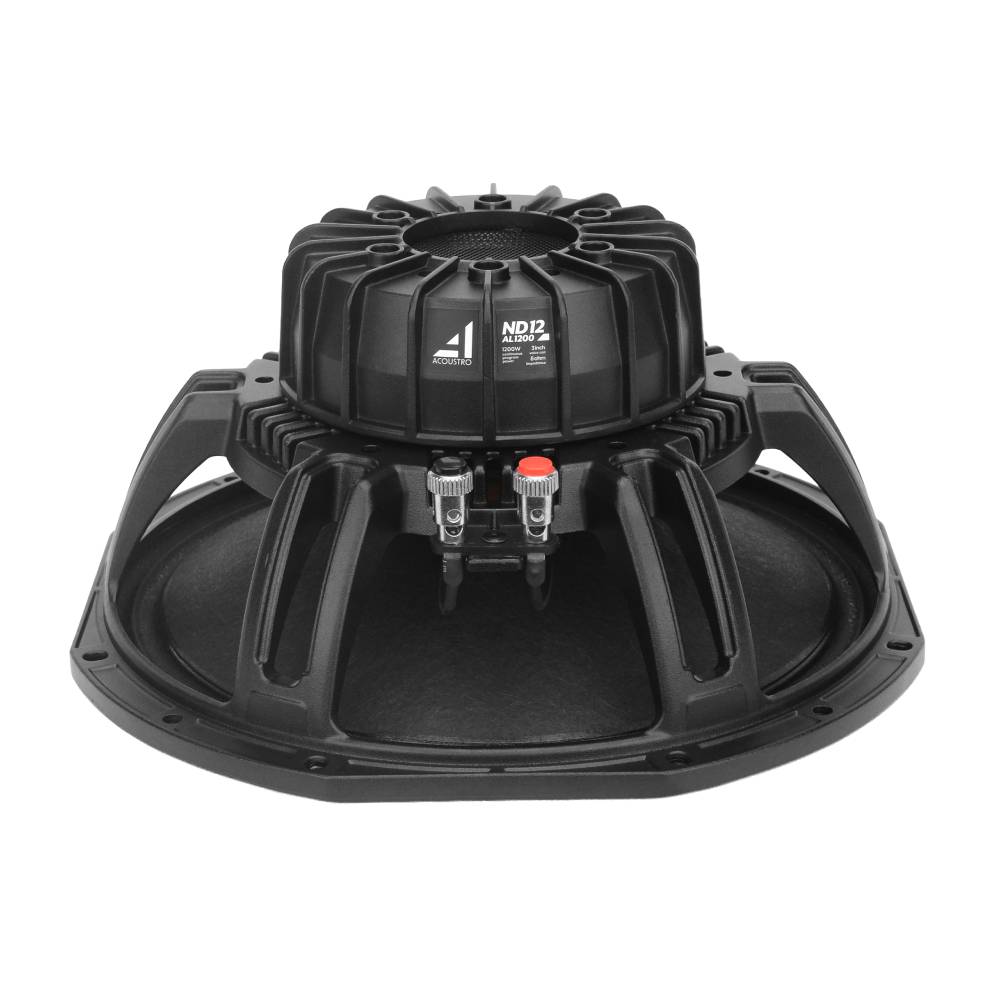

ND 12 AL 1200 (2)

ND12 AL 1200

Technical Specifications
Nominal Diameter	320 mm / 12 inch
RMS Power Rating	600 Watts
Continuous Power Handling	1200 Watts
Nominal Impedance	8Ω
Voice Coil Diameter	3 inch / 76 mm
Voice Coil Layers	Single layer
Sensitivity	99dB
Frequency Response	45 – 3200 Hz
Magnet Type	Neodymium
Magnet Size	131×86 mm
Suspension System	1x Damper
Weight	4.3 Kilograms

TS Parameters
Re	5.5Ω
Fs	45hz
Mms	62.1 g
Le (1kHz)	0.8 mH
Qms	10.8
Qes	0.21
Qts	0.20
Vas	80.4 ltr
Xmax	5 mm
Bl	21.9 Tm
Cms	0.20 mm/N
Sd	530 cm²
