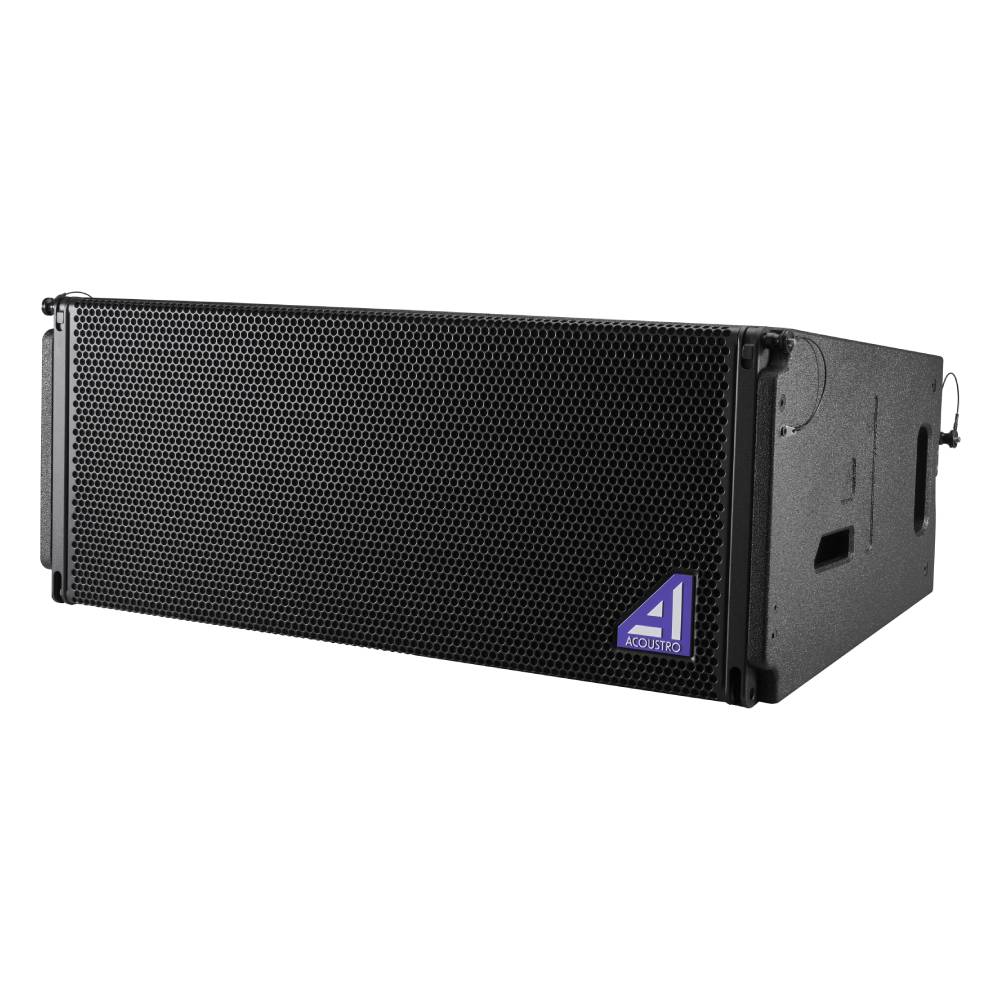

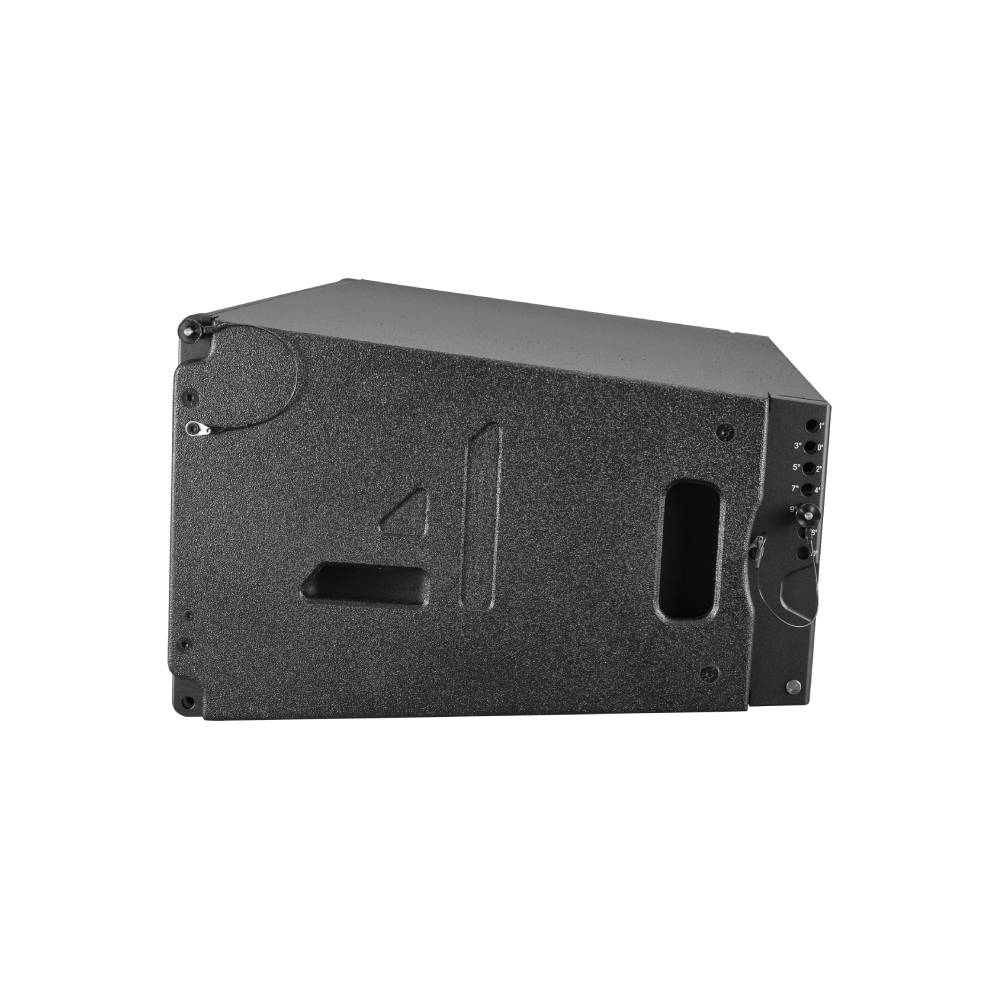

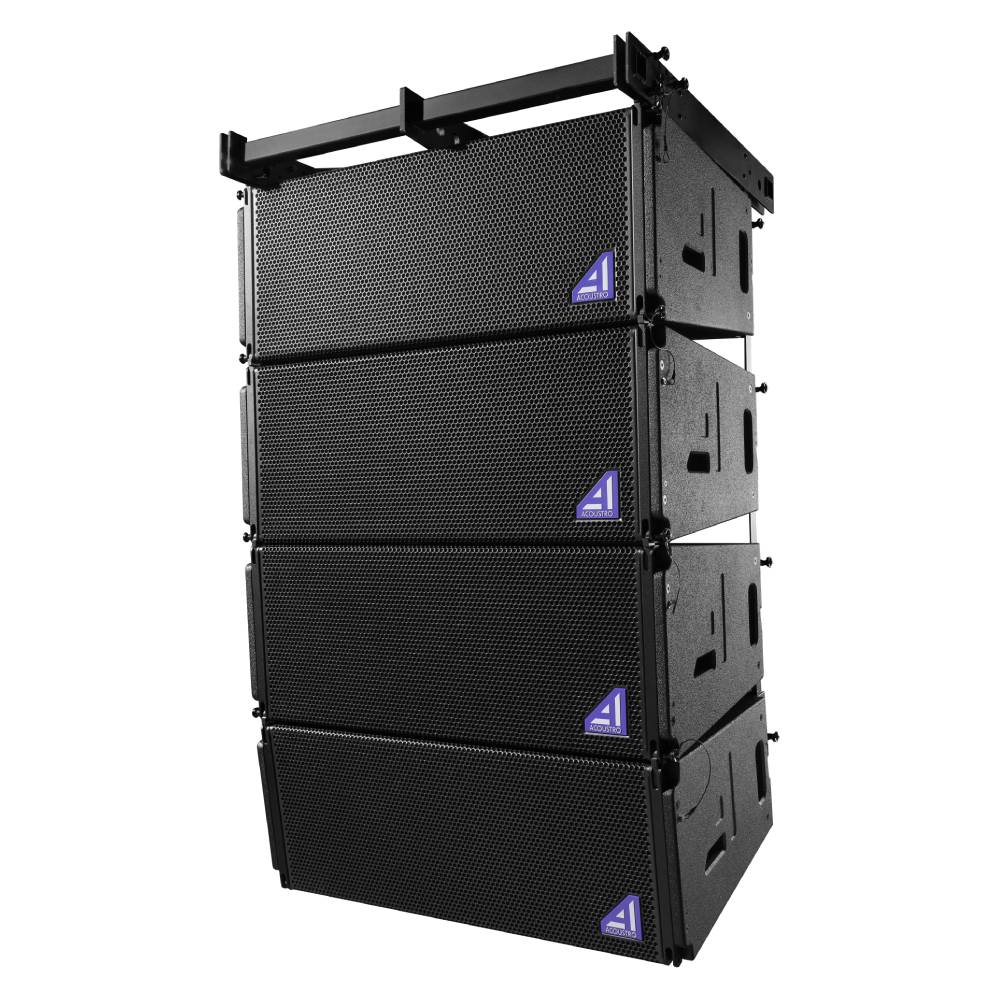

CLAW 2123

Acoustro’s CLAW 2123 is a passive large format 3-way line array, it is precisely engineered and constructed with birch plywood for outstanding resonance and
longevity. It delivers an astonishing peak SPL of 141dB with a sensitivity of 101dB of the LF drivers and 108dB of the MF and HF drivers.

It features 2x 12” neodymium LF drivers + 2x 8” neodymium MF drivers and 2x neodymium compression drivers with 3” voice coils. The MF and HF are connected via a passive crossover network inside the enclosure. 2x NL4 speakon sockets are connected for operation of the drivers, +1 -1 connected for the MF & HF drivers and +2 -2 for the LF drivers.

Components: 2x 12” LF, 2x 8” MF, 2x 1.4” exit compression driver with 3” voice coil (all drivers with neodymium magnets).
Max SPL: 141dB
Dispersion: 80° x 10°
Frequency Range: 55Hz – 20kHz

Technical Specifications
Frequency Range	55Hz- 20kHz
Nominal Directivity	80°× 10°
Max SPL (Peak)	141dB
LF Components	2x 12″ neodymium drivers
MF components	2x 8″ neodymium drivers
HF components	2x 1.4″ exit compression drivers(3” voice coil)
Nominal impedance LF	8 ohms (2x 16 ohms connected parallel)
Nominal impedance MF	8 ohms (2x 16 ohms connected parallel)
Nominal impedance HF	8 ohms (2x 16 ohms connected parallel)
LF power handling	2x 500 watts (AES)
MF power handling	2x 250 watts (AES)
HF power handling	2x 150 watts (AES)
Connectors	2x NL8 speakons (+1 –1 for LF & +2 –2 for MF & HF)
Width	883 millimeters
Height (front)	350 millimeters
Height (rear)	260 millimeters
Depth	539 millimeters
Weight	49.5 kilograms
