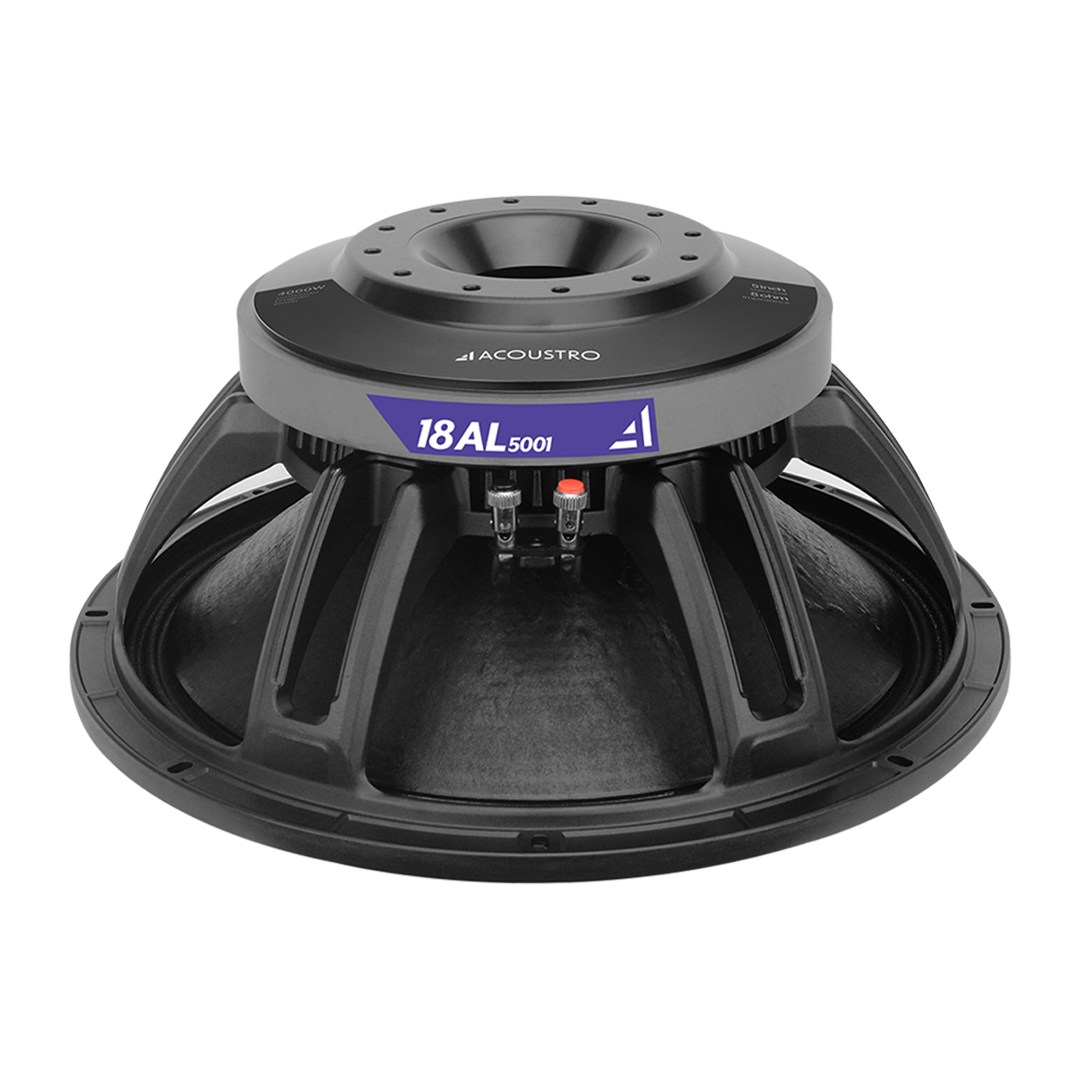

18al5001 back

18al5001 front

18AL 5001

Technical Specifications
Nominal Diameter	460 mm / 18 inch
RMS Power Rating	2500 Watts
Continuous Power Handling	5000 Watts
Nominal Impedance	8Ω
Voice Coil Diameter	6 inch / 153 mm
Voice Coil Layers	IN/OUT
Sensitivity	97dB
Frequency Response	35 – 1800 Hz
Magnet Type	Ferrite
Magnet Size	280×33 mm
Suspension System	Dual Spider
Weight	20.7 Kilograms

TS Parameters
Re	4.8Ω
Fs	35hz
Mms	315 g
Le (1kHz)	1.7 mH
Qms	11.4
Qes	0.45
Qts	0.43
Vas	129 ltr
Xmax	11.5 mm
Bl	27.3 Tm
Cms	0.06 mm/N
Sd	1194 cm²
