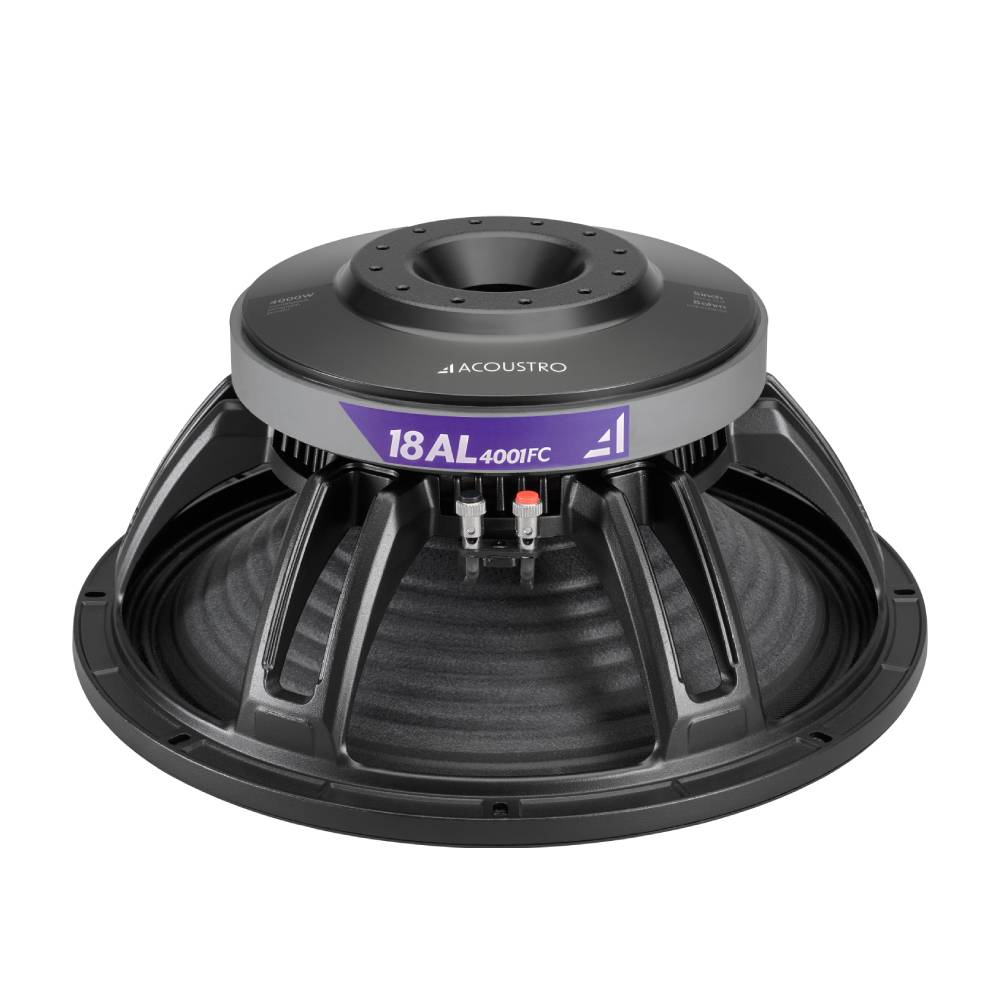

New Project (1)

18AL 4001 FC

Technical Specifications
Nominal Diameter	460 mm / 18 inch
RMS Power Rating	2000 Watts
Continuous Power Handling	4000 Watts
Nominal Impedance	8Ω
Voice Coil Diameter	5 inch / 125 mm
Voice Coil Layers	IN/OUT
Sensitivity	97dB

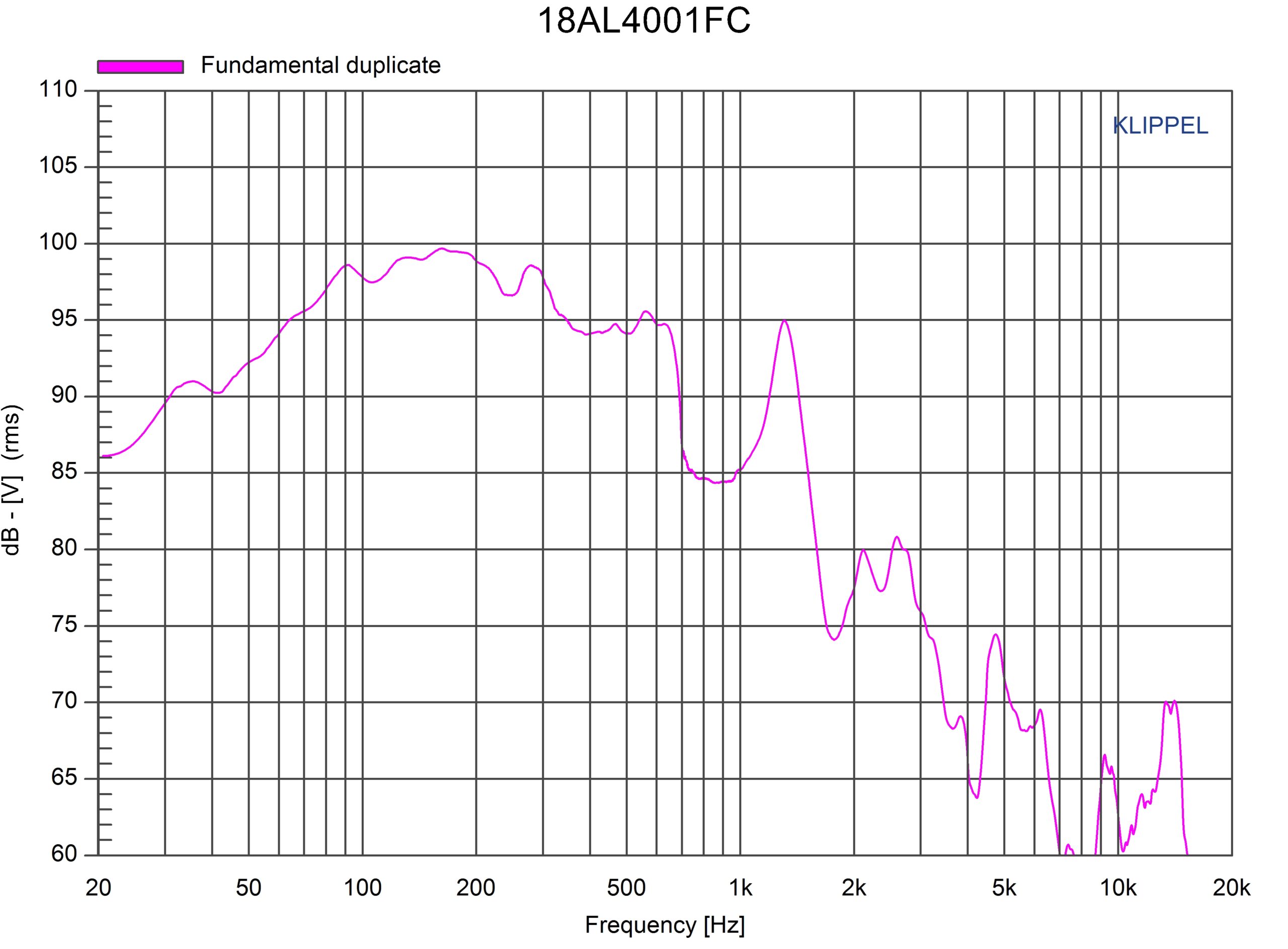

Frequency Response	34 – 1400 Hz
Magnet Type	Ferrite
Magnet Size	280×30 mm
Suspension System	2x Damper
Weight	22.4 Kilograms

TS Parameters
Re	5.5Ω
Fs	34hz
Mms	243 g
Le (1kHz)	1.9 mH
Qms	7.2
Qes	0.21
Qts	0.20
Vas	181 ltr
Xmax	9.5 mm
Bl	37.4 Tm
Cms	0.09 mm/N
Sd	1195 cm²
