15AL 1600

15AL-1600

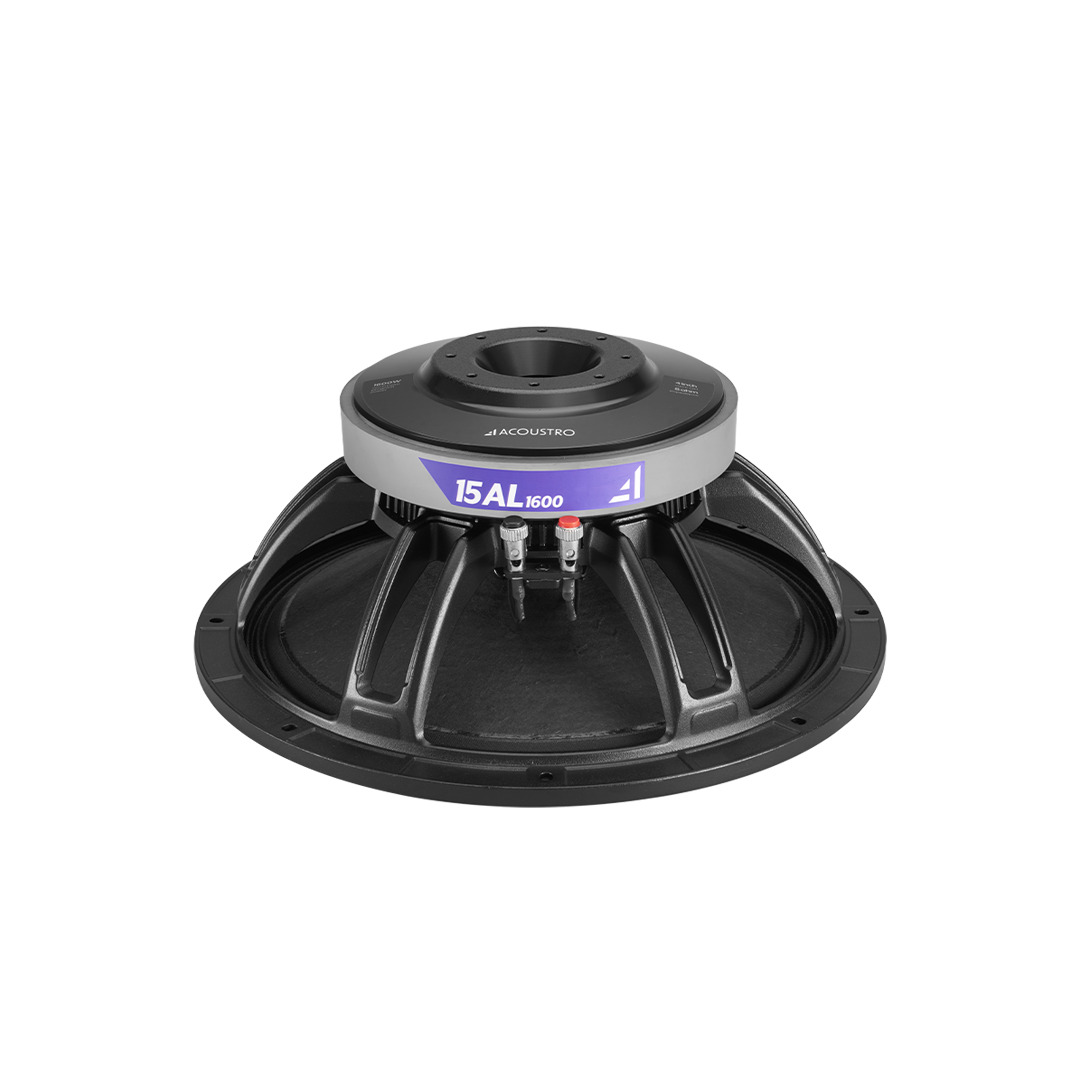

15al 1600 back

15AL 1600

Technical Specifications
Nominal Diameter	390 mm / 15 inch
RMS Power Rating	800 Watts
Continuous Power Handling	1600 Watts
Nominal Impedance	8Ω
Voice Coil Diameter	4 inch / 100 mm
Voice Coil Layers	IN/OUT
Sensitivity	98dB

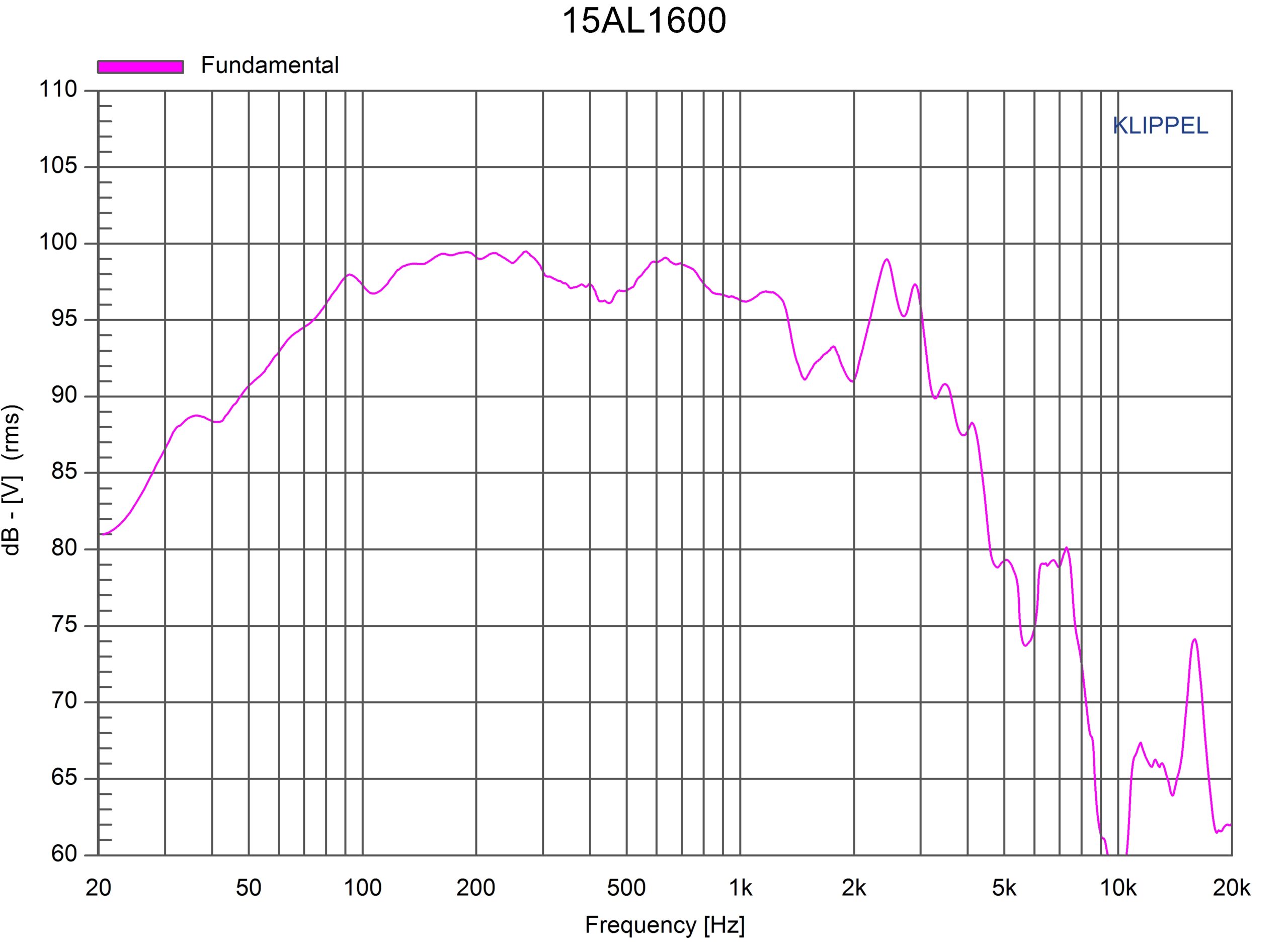

Frequency Response	56 – 3000 Hz
Magnet Type	Ferrite
Magnet Size	220×30 mm
Suspension System	2x Damper
Weight	12 Kilograms

TS Parameters
Re	5.1Ω
Fs	56hz
Mms	126 g
Le (1kHz)	0.9 mH
Qms	8.9
Qes	0.44
Qts	0.42
Vas	64.7 ltr
Xmax	6.4 mm
Bl	22.6 Tm
Cms	0.06 mm/N
Sd	855 cm²
