15AL 1000

15AL-1000

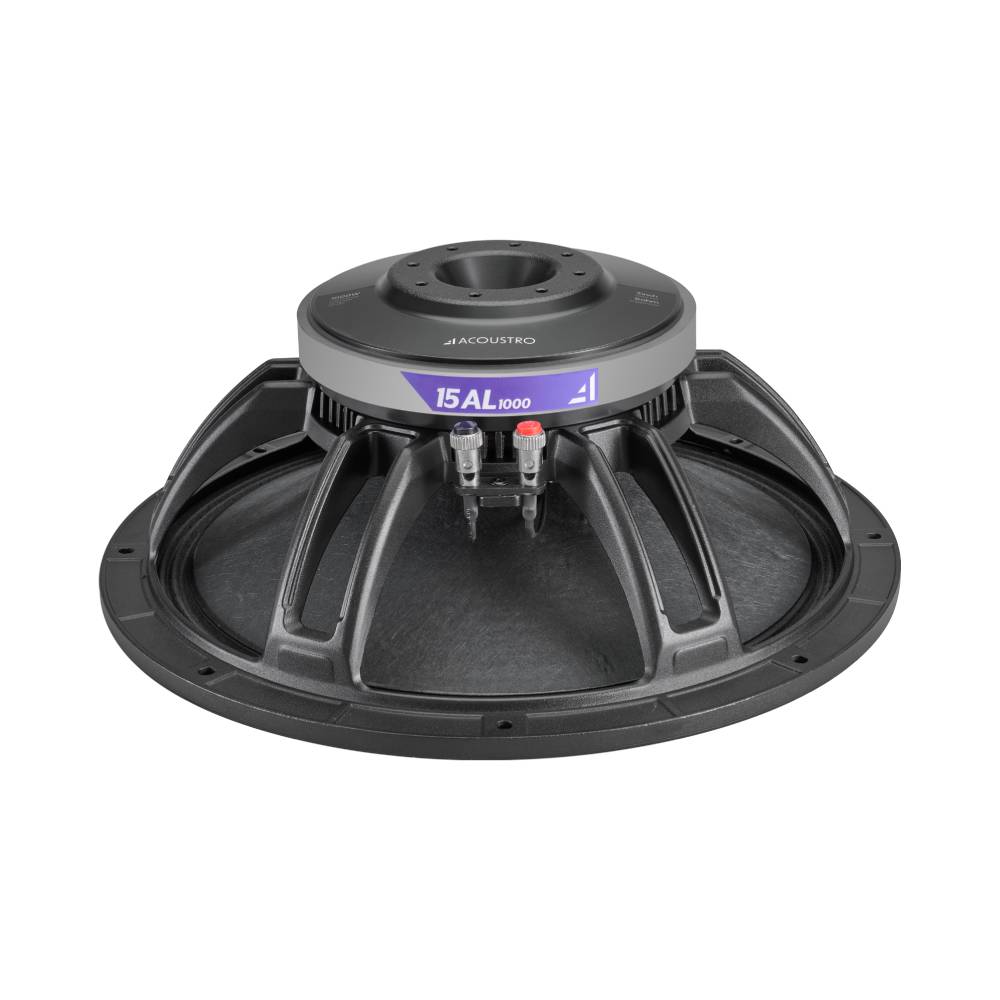

15AL-1000_back

15AL 1000

Technical Specifications
Nominal Diameter	390 mm / 15 inch
RMS Power Rating	500 Watts
Continuous Power Handling	1000 Watts
Nominal Impedance	8Ω
Voice Coil Diameter	3 inch / 76 mm
Voice Coil Layers	Single layer
Sensitivity	98.5dB
Frequency Response	43 – 2800 Hz
Magnet Type	Ferrite
Magnet Size	190×20 mm
Suspension System	1x Damper
Weight	7.8 Kilograms

TS Parameters
Re	5.8Ω
Fs	43hz
Mms	100 g
Le (1kHz)	1.08 mH
Qms	11.8
Qes	0.34
Qts	0.33
Vas	142 ltr
Xmax	4.1 mm
Bl	21.3 Tm
Cms	0.13 mm/N
Sd	855 cm²
